1. Technical Specifications

the keyboard has waterproof, dustproof & explosionproof features ( IP65 / IK07 ).

Over 2million key life cycle.

Integrate with full functional 2 keys touch-pad.

The panel board and keys are made by SUS304 Stainless-steel ( SUS316 is for option ).

USB port (Type-A) interface, plug & play for common operation system, such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.

2. Mechanical Features

Panel board and keys material: SUS304 Stainless-steel

Base board material: Aluminum alloy

Key life cycle: 2mil min.

Key press force: 2~3N

Key travel length: 2MM

Dimensions: 345*148*24MM

Weight: 1250g

3. Environmental adaptability

Operating temperature: -40℃～+65℃,

Op. RH: 10～95%

Storage temperature: -40℃～+75℃

Storage RH: 5～95%

Protection grade: IP65 / IK07

EMC Standards:

EN55022:1988+A1:2000+A2:2003

EN55024:1988+A1:2001+A2:2003

ESD protection: 15KV

4. Keyboard Language

Defult keyboard language is US.

Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.

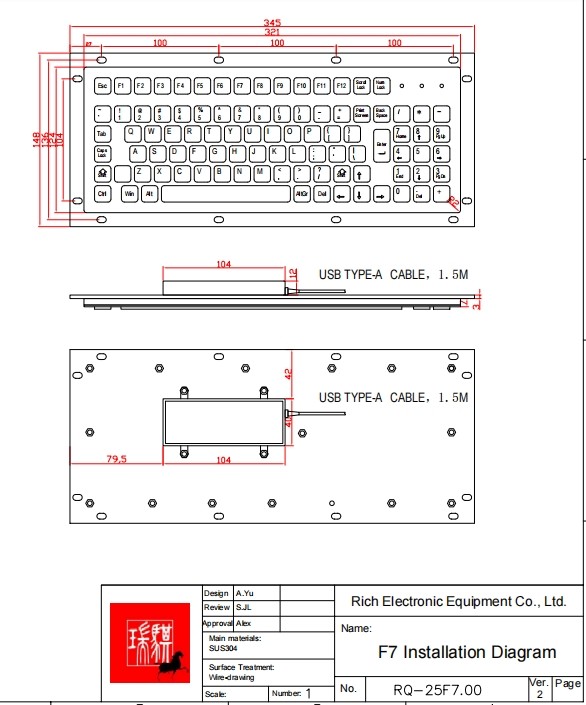

5. Installation drawing

6. APPLICATION SITE
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

7.Please note:

All photos on this website were taken in real conditions. Due to variations in lighting, shooting angles, and display resolutions, the images you see may exhibit a certain degree of color difference. We kindly ask you to refer to the actual received products for accurate representation. Thank you for your understanding.

If you have any question about this items,please feel free to contact us for further information,thank you.

Shenzhen Rich Electronic Equipment Co., Ltd. is a technology-oriented enterprise conducting independent research and development and has a workshop. Since 1997, it has specialized in producing and manufacturing keyboards and input equipment in special industries. It is a leading manufacturer in the industry. Ruiqi's products have been widely used in finance, energy, military industry, maritime affairs, industrial control, medical information, and other fields, providing customers with waterproof, dustproof, and explosion-proof products.
