Rich Electronic Equipment Co.,Ltd. Advanced industral keyboard manufactor with over 26 years of experience. We made keyboard that you can rely on.
2 Years
| Ask Lasest Price | |
| Model Number : | F3 |
| Certification : | CE/ROHS/FCC |
| Price : | negotiable |
| Payment Terms : | L/C, D/A, T/T, Western Union |
| Supply Ability : | 10000 pieces per month |
| Delivery Time : | 5-10 working days |
1.Technical Specifications
The keyboard has waterproof, dustproof & explosionproof features ( IP65 / IK07 ).
Over 2million key life cycle.
The panel board and keys are made by SUS304 Stainless-steel ( SUS316 is for option ).
USB port (Type-A) interface, plug & play for common operation system, such as MS-windows / MacOS / Unix / Linux / ArmOS / Android.
2.Mechanical Features
Panel board and keys material: SUS304 Stainless-steel
Base board material: Aluminum alloy
Key life cycle: 2mil min.
Key press force: 2~3N
Key travel length: 2MM
Dimensions: 324*134*24MM
Weight: 1000g
3.Environmental adaptability
Operating temperature: -40℃～+65℃,
Op. RH: 10～95%
Storage temperature: -40℃～+75℃
Storage RH: 5～95%
Protection grade: IP65 / IK07
EMC Standards:
EN55022:1988+A1:2000+A2:2003
EN55024:1988+A1:2001+A2:2003
ESD protection: 15KV
4.Keyboard Language
Defult keyboard language is US.
Optional for customized different languages, such as Spanish, French, German, Portuguese, Italian, Russian, Arabic, Persian, etc.
5. Installation drawing
6.APPLICATION SITE
This Keyboard is mainly targeted for use for unsupervised or
semi-supervised positions of varied access applications, internet
terminals and information kiosks at universities, shopping malls,
hotels, banks, airports, railway-stations and other public areas,
ticket vending machines, gas stations, cash machines (ATMs/CDM),
Internet public phones etc.

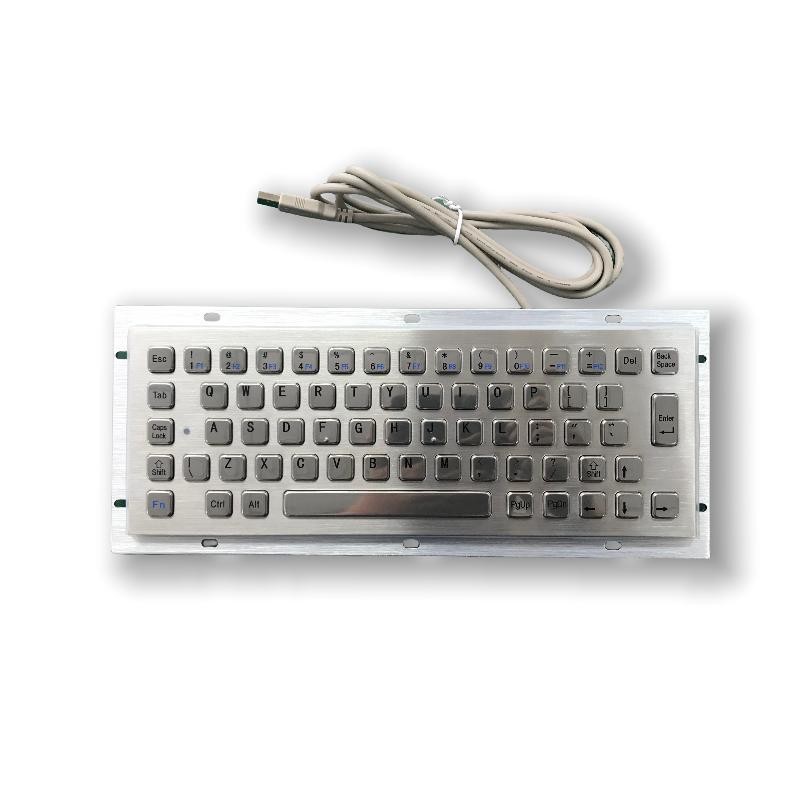

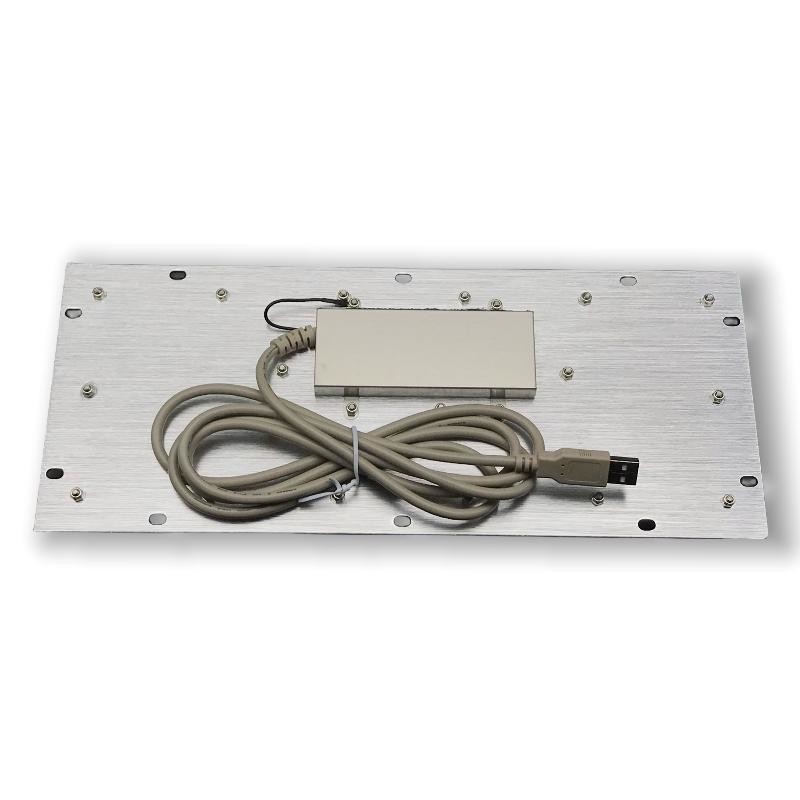

7. More pictures:
If you have any question about this items,please feel free to contact us for further information.
|
|
